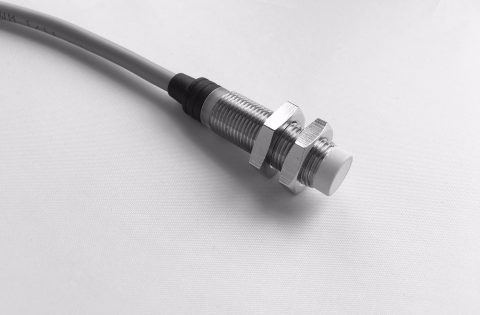

PRODUCT NAME: BRANTZ STANDARD WHEEL SENSOR
PRODUCT CODE: BR2B
INTRODUCTION:
The Brantz standard wheel sensor can be mounted on almost any car in a variety of different locations
and set ups. The most common set up is mounted to pick up the metal hub bolt heads, on the brake disc
of a non-driven wheel, as they pass by. A minimum of 4 bolts are required, however 6 is recommended.
Steel is the optimum target and being at least 20% larger than the face of the sensor, this is also true for
the size of a hole being used to trigger the sensor.
Alternative positioning:
o Mounted to pick up on flying tabs (minimum of 2 positioned 180° apart) fastened on the bolts of
the Prop Shaft’s Universal Joint
o Mounted to pick up off an ABS ring
o Mounted through the back plate of Drum Brakes to pick up off the 4 hub studs
o Mounted to detect an absence of steel, for example drilled holes in a rotating disc
SPECIFICATIONS:
• Suitable for all the Brantz range of Tripmeters
• Pick up off any metal object passing within 1mm
• 12mm diameter thread
• Cable length: ~2.1M
• 1 Pulse per Detection
• Weight: 102g

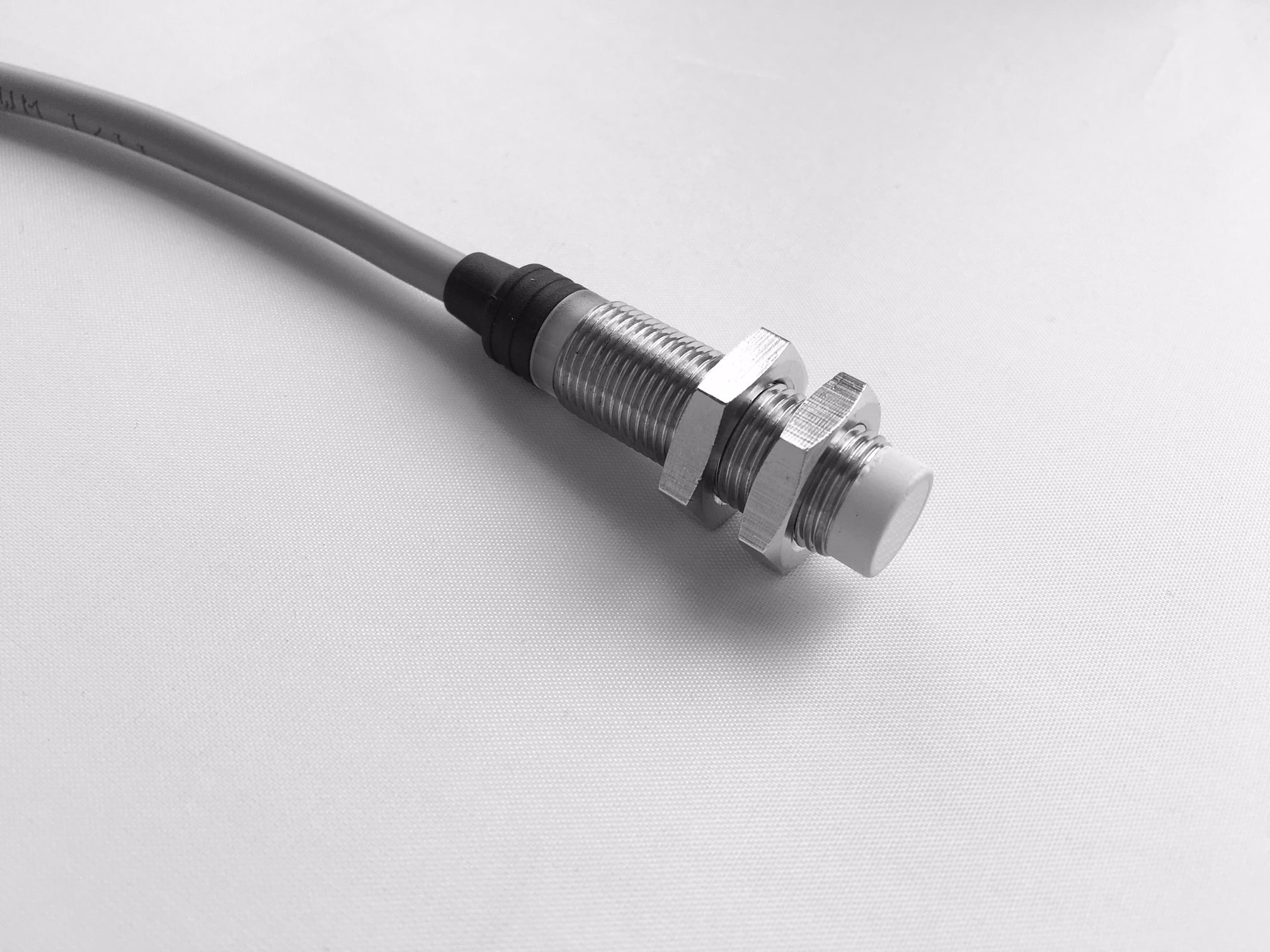

BRANTZ WHEEL SENSOR,BR2B
£30.00
WHEEL SENSOR
BR2B
The Brantz standard wheel sensor can be mounted on almost any car in a variety of different locations
and set ups. The most common set up is mounted to pick up the metal hub bolt heads, on the brake disc
of a non-driven wheel, as they pass by. A minimum of 4 bolts are required, however 6 is recommended.
Steel is the optimum target and being at least 20% larger than the face of the sensor, this is also true for
the size of a hole being used to trigger the sensor.
THIS SENSOR WILL FIT OUR SENSOR BRACKET FOR THE BILSTEIN STRUT
all prices exclude vat
weight shown for shipping purpose only, may not be actual weight of product
non UK customers may be subject to taxes and duties for their country
In stock
