Universal Weld In Seat Rail Mounting / Subframe Kit – FIA and MSA / MSUK approved type.
The correct kit as per latest FIA & MSUK spec and drawings.
35 mm Seamless tubes ready to be drilled to suit your seat mounts.

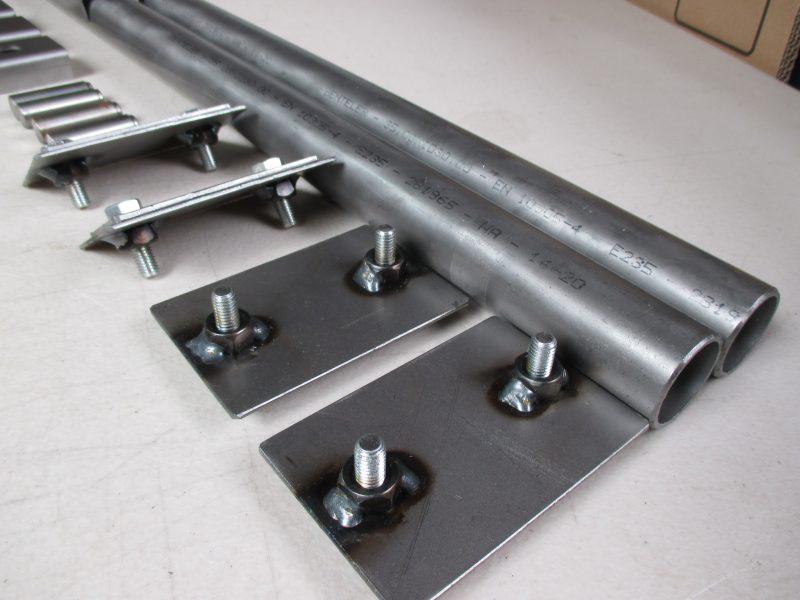

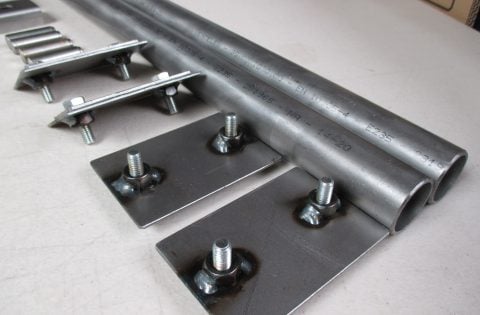

Counter Plates supplied with pre-welded nuts, welds to inner sills and Gearbox Tunnel.
M8 threaded and profiled inserts welds into tubes.
End plates welds to tube ends can be bolted or welded into position between counter plates.
Meets FIA APPENDIX J ARTICLE 253/A16.2 and MSUK K2.2.1.2/DRAWING K64(a)-(c).
Kit supplied loose for DIY Assembly.

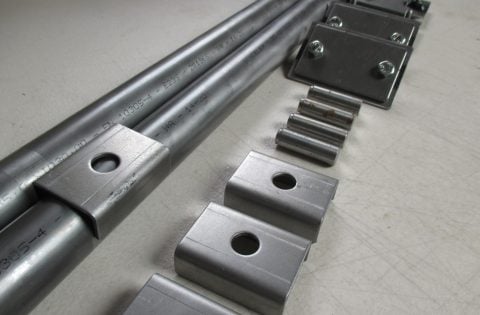

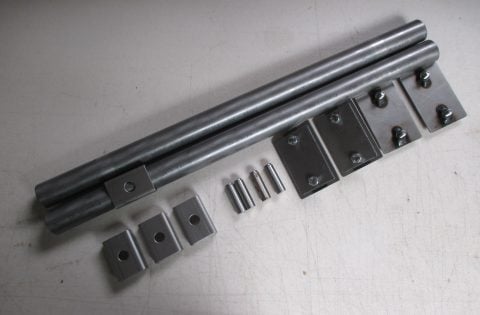

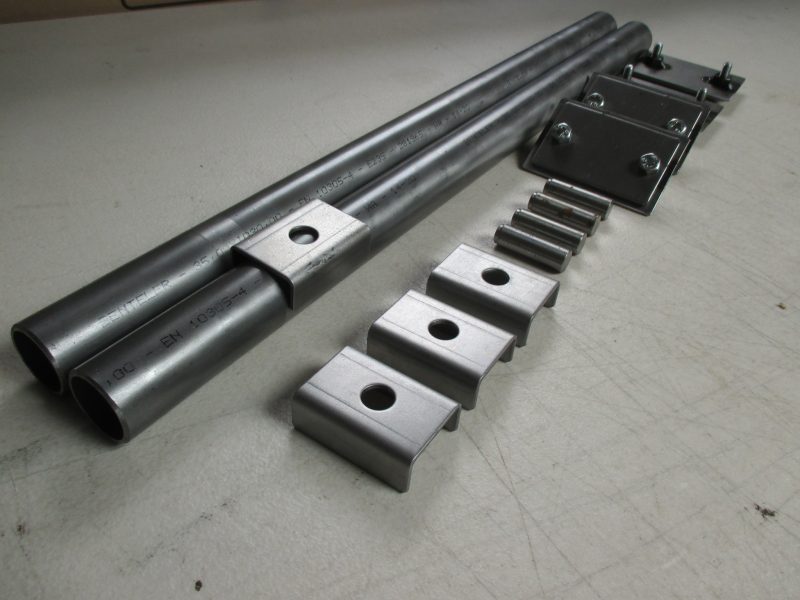

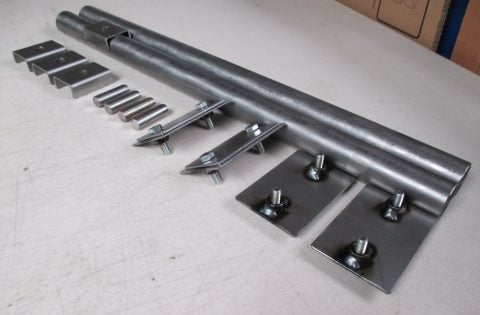

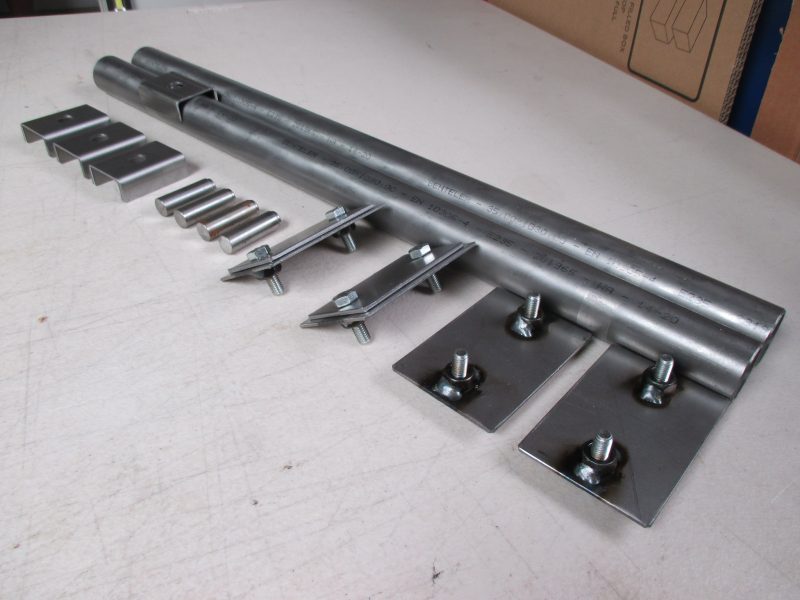

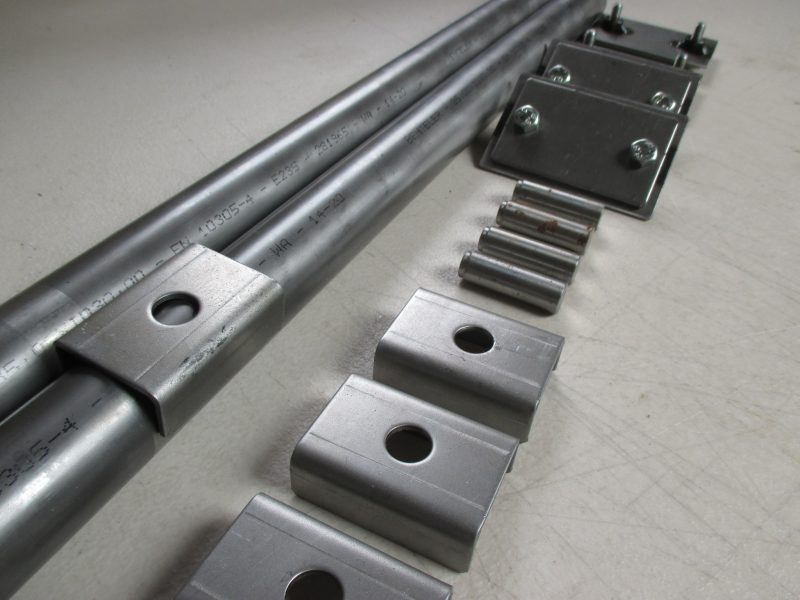

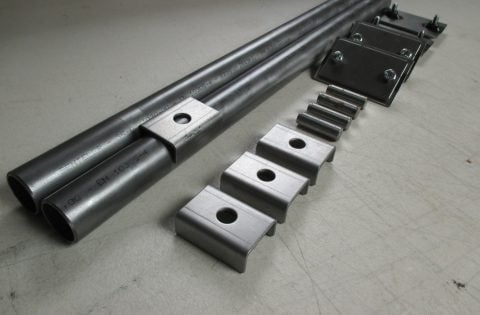

Kit Includes:
2 x Diameter 35mm x 2.5mm x 600mm long CDS tubes.
4 x Weld on tube saddles. 57mm long x 2.5mm thickness.
4 x Weld on inner sill / tunnel plates with pre-welded nuts.
4 x Tube End Plates.
4 x Diameter 14mm M8 Threaded and profiled Inserts to prevent pull thru.
